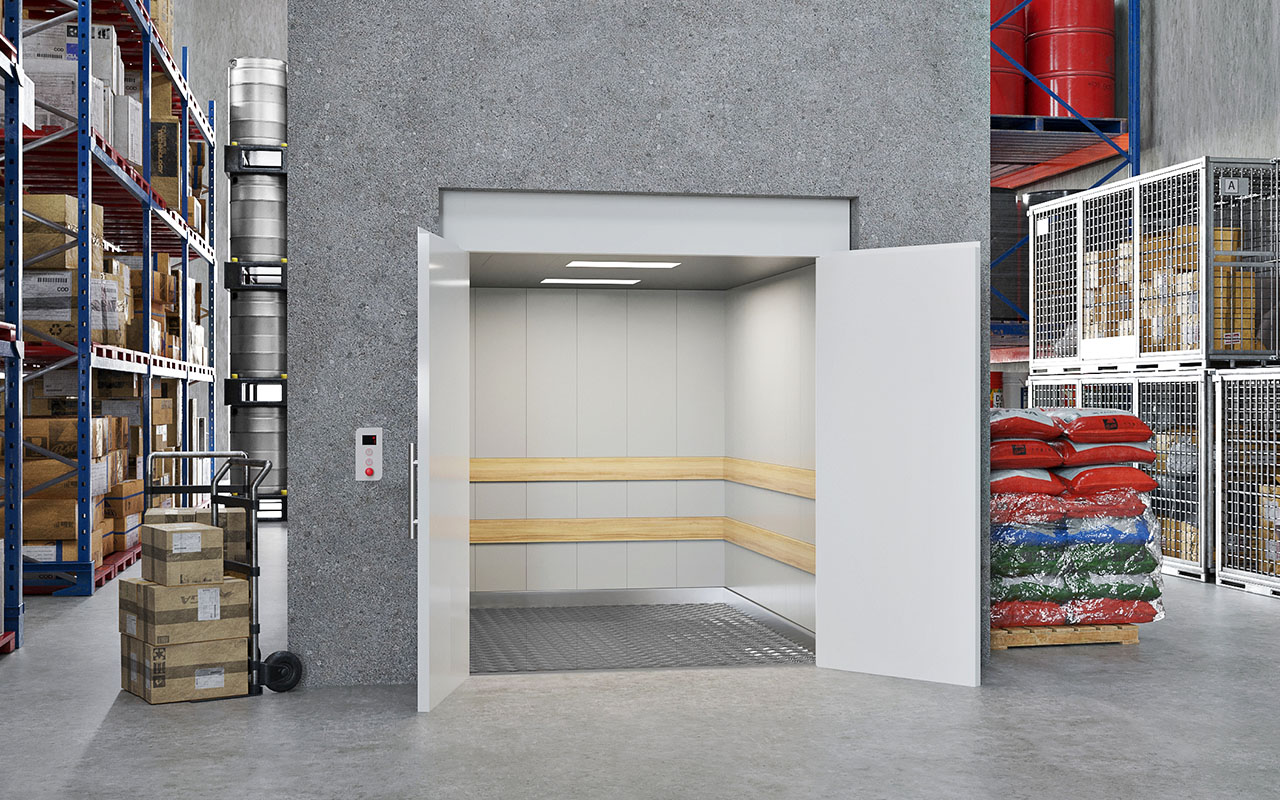

iKONIC Galaxy
2000kg Goods Lift
You can choose between a Goods Only lift solution or a Goods + Attendant lift solution.
The Galaxy goods lift has been specially designed for buildings with high turnover and goods that move between floors. It offers exceptional performance and is far superior to standard platforms and goods lifts.
iKONIC Galaxy is offered in load capacities of 500, 1000, 1500, and 2000kg, with an extensive range of lift car configurations.
Additionally to our wide range of standard solutions, Ikonic can customize lifts to your specific specifications, adapting them to fit your exact needs.
The installation process is designed to cause the least disruption to the day-to-day operation of your business, and its installation requires no messy on-site construction.
With the Galaxy, you won’t have to do any major construction inside your building since it comes with its own freestanding modular structure.
Performance coupled with durability.
The equipment is designed to work intensively, reliably, and efficiently, and ensure that goods are moved safely.
A Galaxy lift from iKONIC offers a duty load capacity of up to 2000kg, features a rated speed of 0.15m/s, and can travel up to 15 meters.
It is possible to adapt this lift to suit your particular needs in many different ways, including:
- Adding buffer rails to cars
- Various kick plates
- Floor finishes in aluminium or steel chequer plate that are hard-wearing,
- Shutter gates with manual operation,
- A picket gate.
ADVANTAGES OF iKONIC GALAXY
- Custom sizes and designs are available
- Options for single or through entry
- Various capacities up to 2000 kg
- Shutter gates or hinged doors
- In-car controls for attendants
- Installs quickly without requiring a shaft
| GALAXY BASIC TECHNICAL INFORMATION | |
|---|---|
| STANDARDS | EC Machinery Directive 2006/42/CE, EN81-20/50, EN81-70, EN81-71, EN81-21 |
| MAX DUTY LOAD (Kg) | 2000 |
| RATED SPEED (m/s) | 0.15 |
| STARTS PER HOUR | 20 |
| MAX LIFT TRAVEL (M) | 15 |
| MIN PIT (mm) | 100 |
| MIN HEADROOM (mm) | 2400 |
| POWER SUPPLY (TNP) | 400V / 3 Phase / 50 Kw |
| DRIVE SYSTEM | GEARED TRACTION |
| ENTRANCE OPTIONS | SINGLE ENTRANCE THROUGH ENTRANCE |
| MIN SHAFT WIDTH (mm | 1470 |
| MIN SHAFT DEPTH (mm) | 1180 |
